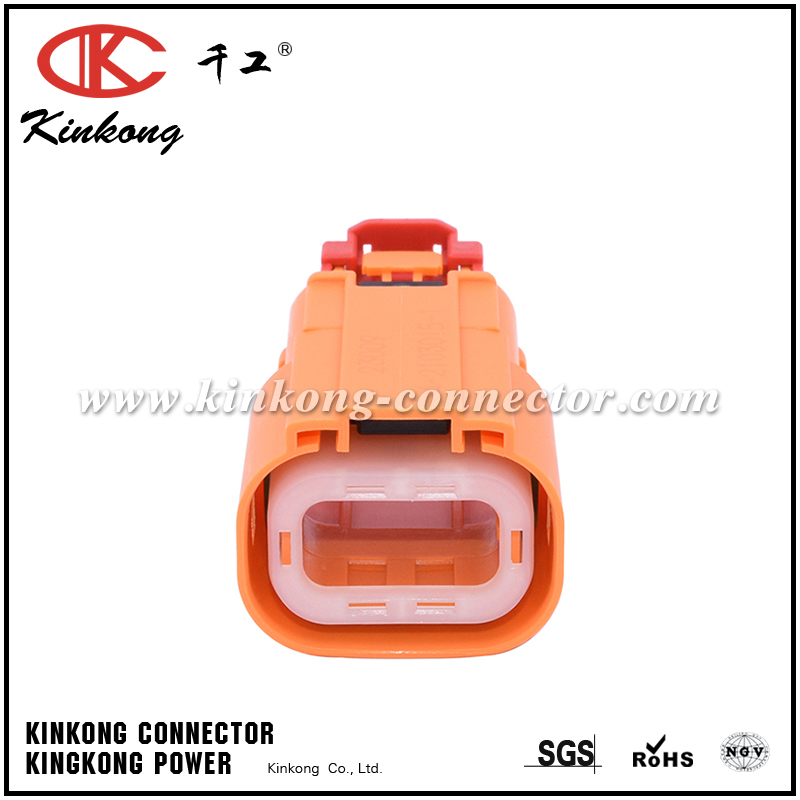

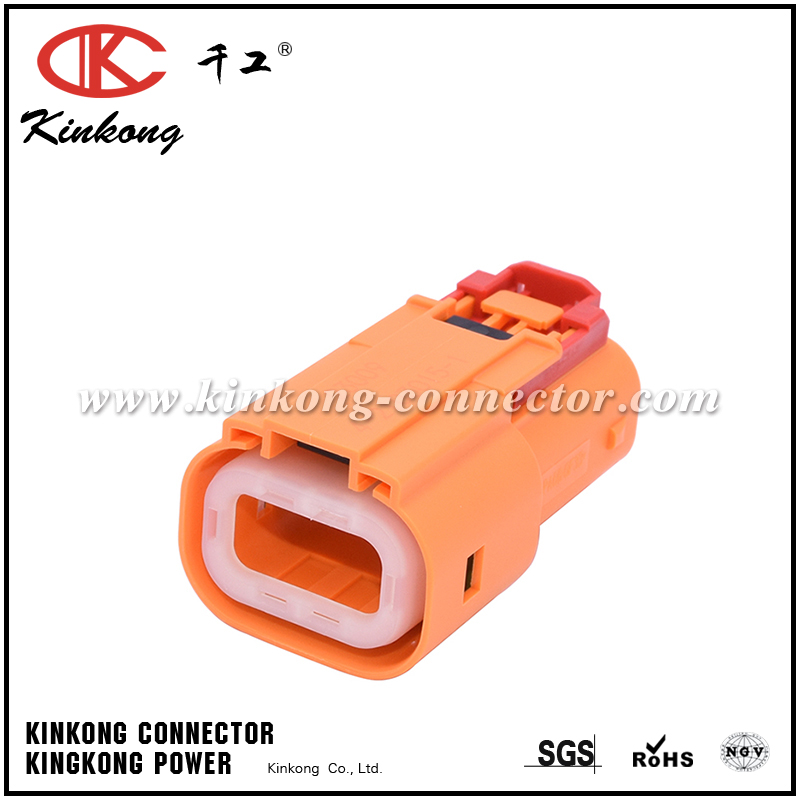

2 hole female Housing 4-2103015-1

9990000285 4-2103015-1-Original 2 hole female Housing

Products Details

Product name:

9990000285 4-2103015-1-Original 2 hole female Housing

Product Catalog:

Connector Interfaces

OnLine Service:

【Prev Products】

【Next Products】

Product Details	Product Inquiry

Product Type Features

Connector Shape : Rectangular
Connector System : Wire-to-Board, Wire-to-Device
Connector & Housing Type : Housing for Female Terminals
Sealable : Yes
Connector & Contact Terminates To : Wire & Cable
Primary Locking Feature : On the Terminal
Mixed & Hybrid Connector : No

Configuration Features

Number of Positions : 2
Number of Rows : 1

Electrical Characteristics

Operating Voltage (VDC): 850
Nominal Voltage Architecture (V): 12, 24, 42, 48, 80, 90, 125, 240, 500, 550, 600

Body Features

Cable Exit Angle : 180°
Primary Product Color : Orange
Connector & Keying Code : A

Contact Features

Contact Type : Receptacle
Contact Size : 2.8mm
Mating Tab Width : 2.8 mm [ .11 in ]

Mechanical Attachment

Mating Alignment : With
Mating Alignment Type : Keyed
Strain Relief : With
Connector Mounting Type : Cable Mount (Free-Hanging)
Terminal Position Assurance : No

Housing Features

Housing Material : PA GF
Centerline (Pitch) : 10.4 mm [ .409 in ]

Dimensions

Product Length : 32.9 mm [ 1.295 in ]
Product Width : 55.3 mm [ 2.177 in ]
Connector Height : 27.6 mm [ 1.087 in ]

Usage Conditions

Operating Temperature (Max) (°C): 70, 75, 80, 85, 90, 100, 105, 110, 120, 125
Operating Temperature (Max) (°F): 158, 167, 176, 185, 194, 212, 221, 230, 248, 257
Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]

Operation/Application

Circuit Application : Signal

Industry Standards

UL Flammability Rating : UL 94HB
Degree of Protection : IP6K9K
